Rajah Company

The Rajah Company was a maker of automobile spark plugs and terminals and operated in Bloomfield, New Jersey. The company was incorporated in September of 1926 to assume the business of the Rajah Auto Supply Company after the retirement of its owner.

Fig. 313. 1931 Ad for Rajah Hand Crimping Tool.

By 1931 the company was offering a hand crimping tool for attaching terminals the ignition wire.

The scan in Fig. 313 shows an ad for the Rajah hand crimping tool, as published on page 192 of the April, 1931 issue of Motor Boating.

Patents

Patent 1,858,418 for crimping pliers was issued to C.A. Rowley in 1932 with assignment to the Rajah Company.

Trademarks

The Rajah Auto Supply Company filed an application for "Rajah" on February 16, 1907, serial 25,346, published May 14, 1907, for goods spark-plugs and terminals. Registered trademark #63,884 on July 9, 1907 (vol. 129 page 866), which was renewed on July 9, 1927 and assigned to the Rajah Company.

The company registered "Rajah" as trademark #536,059 for hand crimping tools on January 9, 1951. The application was filed on February 9, 1949 and claimed a first use date of April, 1904. The application was published as serial 573,570 on September 19, 1950.

[Editor's note: Rajah Co. #624,893. Published 1-24-56.]

Selected Tools

Rajah 10 Inch Crimping Pliers

Fig. 314. Rajah 10 Inch Crimping Pliers, with Insets for Back Side, Side View, Construction, and Marking Detail, ca. 1932+.

Fig. 314 shows a pair of Rajah 10 inch crimping pliers, stamped with "Rajah" and "Pat. 1858418" on the upper handle, with "Made in U.S.A." on the lower handle.

The lower left inset shows the tip of the jaws, which are fitted with replaceable wire-stripping blades.

The overall length is 9.9 inches, and the finish is plain steel and black paint.

The marked patent notation refers to patent 1,858,418, filed by C.A. Rowley 1930 and issued in 1932.

Rancke Manufacturing Company

The Rancke Manufacturing Company (or Rancke Wrench Company) operated in Hinsdale, Illinois and is currently known only by the advertisement below. The company was likely associated with Hinsdale Manufacturing, as Albert W. Rancke was one of the founders of Hinsdale.

We've added this entry as a placeholder while we search for additional information on the company.

Fig. 315. 1921 Ad for Rancke Wrench Company.

Fig. 315 shows an advertisement for a set of Rancke wrenches, as published on page 18 [External Link] of the October 15, 1921 issue of Mercantile Co-Operator.

The illustration and description for the wrenches is quite similar to an ad for Hinsdale Wrenches, suggesting that the Rancke wrenches may have been produced by Hinsdale Manufacturing.

The examples of Rancke wrenches found online were marked with "Rancke Mfg. Co." stamped on the shank.

Reechet Tool Corp.

The Reechet Tool Corporation operated in Cleveland, Ohio during the mid 1950s as the maker of a novelty geared right-angle driver based on patent 2,594,669.

The company appears to have been founded in 1953, based on a report from the State of Ohio. The report listed the founders as Robert N. Buckingham, Benjamin H. Goldman, John E. Mills, and Benjamin R. Goldman, and the company address was given as 1012 Hippodrome Building in Cleveland. References to the Reechet driver started appearing in the trade press in 1954.

The company's sole known product was the Reechet R-375 3/8-drive right-angle driver, which resembled a round-head ratchet but was driven instead by rotating the end of the handle, either with a Tee-bar or by using another 3/8-drive tool. The Reechet driver allowed turning a socket in a location with insufficient space to swing a ratchet handle.

The AC Spark Plug Reechet Tool Kit

By 1957 Reechet Tool had a deal with the AC Spark Plug division of General Motors to offer a special spark plug tool kit, which combined the Reechet driver with several spark plug sockets.

Fig. 316. 1957 Ad for AC Spark Plug Reechet Tool Kit.

The scan in Fig. 316 shows an ad for the "AC Spark Plug Reechet Tool Kit", as published on page 13 of the May, 1957 issue of Motor Age.

The illustration shows the kit as consisting of the Reechet driver, an adapter, two extensions, and three spark plug sockets. (The ad says there are seven pieces.)

Although not shown in the illustration, the Reechet driver in the set was marked with "AC" on the head, instead of the usual markings for Reechet's own production.

Patents

Trademarks

Selected Tools

Reechet R-375 3/8-Drive Right-Angle Driver

Fig. 317. Reechet R-375 3/8-Drive Right-Angle Driver, with Insets for Top View, Construction, and Marking Detail, ca. Mid to Late 1950s.

Fig. 317 shows a Reechet R-375 3/8-drive right-angle driver, stamped with "Reechet" and "Pat. 2594669" on the head.

The middle right inset shows a close-up of the end of the handle, illustrating the 3/8-drive opening. The handle also has an opening for a Tee-bar.

The overall length is 9.8 inches, and the finish is chrome plating.

This tool is described by patent 2,594,669, filed by C.D. Marshall in 1949 and issued in 1952.

In operation, a socket attached to the 3/8-drive stud can be turned in either direction by rotating the end of the handle.

Rex Wrench Company

The Rex Wrench Company was the maker of distinctive "T-Socket" wrench sets with interchangeable sockets or wrench heads, founded in 1907 and operating in Boston, Massachusetts.

Fig. 318. 1908 Advertisement for Rex Wrench Set.

The scan in Fig. 318 shows an ad for "The Rex" wrench set, as published on page 303 of the July, 1908 edition of the Automobile Trade Directory. This ad places the company at 620 Atlantic Avenue in Boston, Massachusetts and is currently our earliest reference to the company.

Incidentally, this publication also has advertisements for other early automotive tools, such as the Auto-Clé and Yala socket sets.

A 1909 edition of the Motor Cyclopedia listed the Rex Wrench Company as a maker of socket wrenches, with an address at 184 Summer Street, Boston and with J. Frank Torbert as the company president.

A 1909 report from the Massachusetts Tax Commissioner gives December 11, 1907 as the certification date for the corporation.

The Rex Wrench tools were based on patent 820,185, filed by J.W. Edmands in 1904 and issued on May 8, 1906. The patent document clearly illustrates the operation of a Tee handle with insertable socket heads, with the connection to the handle allowing several angular offsets.

Fig. 319. 1909 Advertisement for Rex T Adjustable Socket Wrench Set. [External Link]

Fig. 319 shows an ad for the "REX WRENCH" socket set, as published on page 262 of the June 1, 1909 issue of the Cycle and Automobile Trade Journal.

The illustration shows the "Rex T Adjustable Socket Wrench Set" on top, with a set of open-end wrenches partially visible on the bottom.

The text notes that the tools are drop forged from carbon steel.

Fig. 320. 1909 Advertisement for Rex Wrench Set.

The scan in Fig. 320 shows an ad for a Rex open-end wrench set, as published on page 23 [External Link] of the July 7, 1909 issue of The Horseless Age.

The illustration shows a Rex Wrench set with open-end wrench heads. The wrench heads (or other attachments) all have an integral hook-shaped drive tang which fits into a special Tee handle.

Closure in 1916

The Rex Wrench Company had only a relatively short life, as the corporation was dissolved in 1916, according to a 1916 report of Special Acts by the General Court of Massachusetts.

Selected Tools

Rex Wrench "T" Adjustable Socket Wrench Set

Fig. 321. Rex Wrench "T" Adjustable Socket Wrench Set, ca. 1907-1916.

Fig. 321 shows a Rex Wrench "T" socket wrench set, consisting of a Tee handle, crossbar, eight hex socket heads, an open-end wrench head, and a screwdriver head.

The inside of the lid is marked "Rex T Adjustable Socket Wrench Set" in a curved arc, with "Patented May 8th, 1906" just below, and with "Made by Rex Wrench Co." and "Boston, Mass." at the bottom.

The patent date refers to patent 820,185, filed by J.W. Edmands 1904 and issued in 1906.

Rex Wrench Tee Handle from "T" Adjustable Set

Fig. 322. Rex Wrench Tee Handle from "T" Adjustable Set, with Insets for Construction and Marking Detail, ca. 1907-1916.

Fig. 322 shows the Rex Wrench Tee handle from the "T" adjustable set, stamped with a "Pat'd. May 6, '06" patent date on the back side.

The overall length is 8.0 inches, and the finish is plain steel.

The upper inset shows the construction of the drive head. The cross-bar serves to retain the socket or wrench head in the drive end, and the spring-loaded plunger holds the head in the desired position.

The patent date refers to patent 820,185, filed by J.W. Edmands 1904 and issued in 1906.

Rhode Island Tool Company

The company was founded around 1834 as William Field & Company and operated as a maker of nuts and bolts in Pawtucket, Rhode Island. The company moved to Providence in 1845 and was renamed to the Providence Tool Company in 1847.

In 1883 the Providence Tool Company split into the Household Sewing Machine Company and the Rhode Island Tool Company. The latter company operated as a maker of machinery, nuts, bolts, and tools, and with a location at 148 West River Street in a brick factory originally built in 1861.

Currently we don't have much information on the later operations of Rhode Island Tool, but the company is believed to have continued at least into the 1940s.

Tool Identification

Tools made by Rhode Island Tool typically have a forge mark consisting of "RI" in a circle, referred to as the RI-Circle logo in the text.

RI-Circle Logo

Fig. 323. RI-Circle Logo.

Fig. 323 shows the RI-Circle logo as found forged into a Rhode Island Tool No. 37 Wrench.

Selected Tools

Rhode Island Tool No. 5 7/8 Single-Open Wrench

Fig. 324. Rhode Island Tool No. 5 7/8 Single-Open Wrench, with Insets for Back Side and Marking Detail, ca. Late 1920s to 1940s.

Fig. 324 shows a Rhode Island Tool No. 5 7/8 single-open wrench, marked with the model number and RI-Circle logo forged into the shank, with the fractional size stamped on the back side face.

The overall length is 7.5 inches, and the finish is black paint with plain faces.

The across-flats size marking indicates production in 1927 or later.

Rhode Island Tool No. 37 1-1/16x1-1/4 Open-End Wrench

Fig. 325. Rhode Island Tool No. 37 1-1/16x1-1/4 Open-End Wrench, with Inset for Back Side Detail, ca. Late 1920s to 1940s.

Fig. 324 shows a Rhode Island Tool No. 37 1-1/16x1-1/4 open-end wrench, marked with the industry-standard number and RI-Circle logo forged into the shank, with the fractional sizes stamped on the faces.

The overall length is 11.7 inches, and the finish is plain steel.

The back side face is also stamped "1140", the Billings & Spencer model number for a No. 37 wrench. (Further examples of the Billings 11xx series can be found at Billings 11xx Wrenches.)

The across-flats size markings indicate production in 1927 or later.

Richards Manufacturing Company

The Richards Manufacturing Company was founded in Aurora, Illinois and was in operation by 1904 or earlier. The company's earliest products included ball-bearing door hangers and foot-powered grindstones, but their best known product was probably the "Wizard" adjustable ratchet wrench, which was in production by 1907.

The Wizard ratchet wrench was based on patent 854,174, filed by J.N. Noyer in 1906 and issued in 1907.

Fig. 326. 1909 Advertisement for Wizard Adjustable Ratchet Wrench. [External Link]

Fig. 326 shows an ad with an illustration of the Wizard wrench, as published on page 10 of the January 1909 issue of The American Blacksmith.

A separate notice in the same publication describes the advantages of the wrench and claims that several thousand wrenches had been sold by that time.

Merger with Wilcox Manufacturing

In 1910 Richards Manufacturing merged with the Wilcox Manufacturing Company to form the Richards-Wilcox Manufacturing Company. The combined companies produced several types of wrenches in addition to the "Wizard" wrench, including a "Shark" adjustable pipe wrench, a "Yankee" monkey wrench, and various farm implement wrenches.

Continuing Operations

Interestingly, Richards-Wilcox remains in business today as a maker of overhead conveyor systems and door hardware, and readers can visit their web site at Richards-Wilcox [External Link] for more information.

Selected Tools

Richards "Wizard" Ratcheting Adjustable Wrench

Fig. 327. Richards "Wizard" Ratcheting Adjustable Wrench, with Insets for Back Side and Side Views, ca. 1908-1910.

Fig. 327 shows a Richards "Wizard" ratcheting adjustable wrench, stamped with "The Richards Mfg. Co." and "Aurora, Ill." on the face, with "Patented May 21, '07" and "Other Pats Pending" patent notices.

The overall length is 7.8 inches, and the finish is plain steel.

The patent date refers to patent 854,174, filed by J.N. Noyer in 1906 and issued in 1907.

Robert Wrench Company

The Robert Wrench Company was a short-lived tool company operating in New York City, known primarily as the maker of a patented self-adjusting pipe wrench. The wrench patent was issued to Frederic P. Robert in 1922, but by 1924 the patents and production of Robert Wrench had been acquired by the Hoe Corporation.

Selected Tools

Robert 8 Inch Self-Adjusting Pipe Wrench

Fig. 328. Robert 8 Inch Self-Adjusting Pipe Wrench, with Inset for Back Side Detail, ca. 1922.

Fig. 328 shows a Robert self-adjusting pipe wrench, with forged-in markings "Patented & Patents Pending" on one side, and with "Robert Wrench Co. N.Y." on the back side.

The overall length is 8.5 inches, and finish is plain steel.

The patent notice refers to patent 1,407,578, filed by Frederic P. Robert in 1921 and issued in 1922.

Rogers, Printz & Company

Rogers, Printz & Company was a maker of wedge-adjusting nut and pipe wrenches, founded in 1909 and operating in Warren, Pennsylvania.

Fig. 329. 1909 Notice of Incorporation for Rogers, Printz & Company. [External Link]

Fig. 329 shows a notice of incorporation for Rogers Printz, as published on page 94 of the July 8, 1909 issue of the Iron Trade Review.

The principals are listed as A.M. Printz, James P. Rogers, and William R. Rogers, and the capital stock was $50,000.

The company's products were based on patents by John R. Long, initially on the earlier patent 890,146, filed in 1908 and issued on June 9, 1908. Later products used patent 955,974, filed in 1909 and issued on April 26, 1910.

Early production of the FITZALL wrenches were probably made as metal stampings, based on an example shown later.

But by 1910 Rogers Printz had decided to have the wrenches drop-forged, and planned to produce a pipe wrench version as well. We discovered information on these production decisions in the history of a later producer of the FITZALL wrenches, the Standard Wrench & Tool Company,

Standard Wrench & Tool is known to have produced the same FITZALL wedge-adjusting wrenches based on the Long patents, and it turns out that by July of 1911 Standard Wrench had acquired the wrench business from Rogers Printz. More information is available in our article on Standard Wrench, but we'll provide a brief summary here.

In 1910 Rogers Printz signed a $60,000 contract with Roren Drop Forging for production of FITZALL nut and pipe wrenches. Roren had agreed to sell its plant in Providence, Rhode Island to Union Manufacturing and Drop Forging, so the Rogers Printz contract was transferred to Union Manufacturing.

Fig. 330. 1910 Advertisement for Rogers Printz Wedge-Adjusting Wrench. [External Link]

Fig. 330 shows an advertisement illustrating the Rogers Printz wedge-adjusting pipe wrench, as published on page 74 of the August, 1910 issue of Southern Machinery.

At this time the wrench shown in the illustration would have been made by Union Manufacturing and Drop Forging.

Some time later (probably early 1911) Union Manufacturing fell into bankruptcy, and its estate (including the Rogers Printz contract) was purchased by Standard Wrench & Tool.

Having become the contract manufacturer of the FITZALL wrenches by succession, Standard Wrench & Tool apparently thought the tools presented a good business opportunity, and went on to acquire the wrench business from Rogers Printz.

Selected Tools

Rogers Printz 4 Inch Wedge-Adjusting Bicycle Wrench

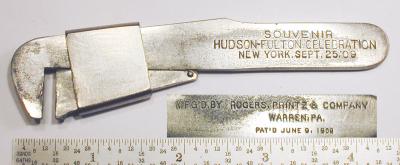

Fig. 331. Rogers Printz 4 Inch Wedge-Adjusting Bicycle Wrench, with Inset for Back Side Detail, ca. 1908-1909.

Fig. 331 shows an early Rogers Printz 4 inch wedge-adjusting bicycle wrench, produced as a souvenir for the Hudson-Fulton event of September 1909. The wrench is stamped "Souvenir Hudson-Fulton Celebration" and "New York, Sept. 25, '09" on the front, with "Mfg'd By Rogers, Printz & Company" and "Warren, PA." on the back, along with a "Pat'd June 9, 1908" patent date.

The overall length is 4.4 inches, and the finish is nickel plating, with some losses due to rust.

The patent date refers to patent 890,146, filed by J.R. Long in 1908 and issued later that year.

The markings on this wrench for both the patent date and the souvenir event date indicate a manufacturing date between June 1908 and September 1909, a fairly precise estimate for a tool more than 100 years old.

The Hudson-Fulton Celebration was an event commemorating the 300th anniversary of Henry Hudson's discovery of the Hudson river, together with the (approximate) 100th anniversary of Robert Fulton's successful demonstration of a steamboat on the Hudson river. Further information on this event can be found in an article on Robert Fulton [Sorry, dead link 😢] published in the September 25, 1909 edition of Scientific American.

Rogers Printz "ARPECO" 8 Inch Wedge-Adjusting Bicycle Wrench

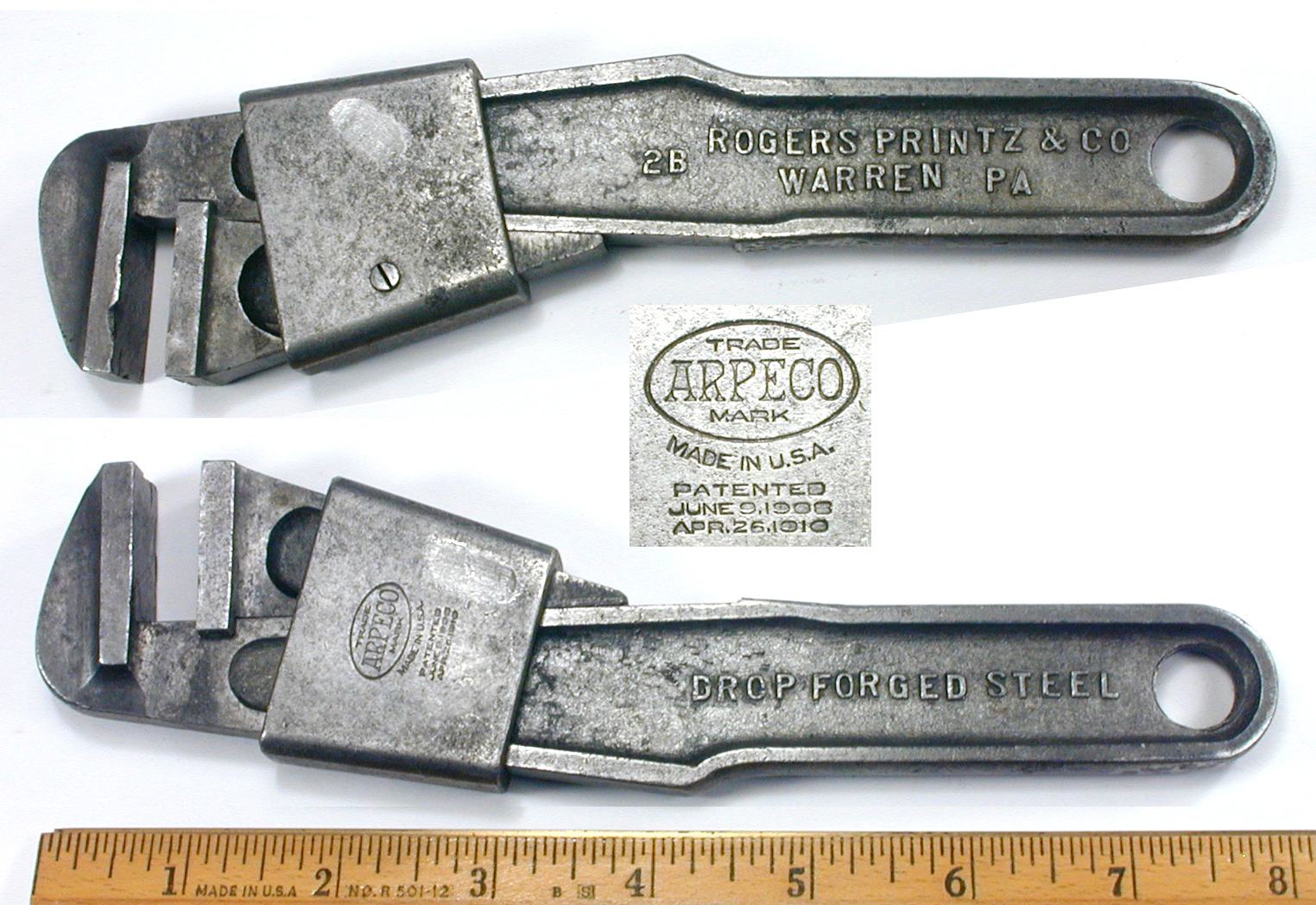

Fig. 332. Rogers Printz "ARPECO" 8 Inch Wedge-Adjusting Bicycle Wrench, with Insets for Back Side and Marking Detail, ca. Mid 1910 to Mid 1911.

Fig. 332 shows a Rogers Printz "ARPECO" 8 inch wedge-adjusting bicycle wrench, marked with "Rogers Printz & Company" and "Warren PA." forged into the handle, with "Drop Forged Steel" forged into the back side.

The sliding sheath is stamped with "ARPECO" and "Trade Mark" in an oval outline, along with a "Patented June 9, 1908 Apr. 26 1910" patent notice.

The overall length is 7.9 inches, and the finish is plain steel.

The first patent date refers to patent 890,146, filed by J.R. Long in 1908 and issued later that year.

The second patent date refers to patent 955,974, filed by J.R. Long in 1909 and issued in 1910.

The marking for the 1910 patent indicates production sometime after April of 1910, and the use of the "ARPECO" brand indicates production before July of 1911, when the ARPECO wrench business was transferred to Standard Wrench & Tool.

Based on the history outlined in our article on the Standard Wrench & Tool Company, this wrench would have been produced by either Union Manufacturing and Drop Forging or Standard Wrench and Tool, both operating from the same factory in Providence, Rhode Island.

It's unusual to be able to provide such specific production information for a tool, especially in the absence of a forge-mark to identify the maker. In this case a dispute over contract fees lead to a lawsuit, which preserved the contractual details in the court transcript.

Rogers Printz "FITZALL" 8 Inch Wedge-Adjusting Bicycle Wrench

Fig. 333. Rogers Printz "FITZALL" 8 Inch Wedge-Adjusting Bicycle Wrench, with Insets for Back Side and Marking Detail, ca. Mid 1911.

Fig. 333 shows a Rogers Printz "FITZALL" 8 inch wedge-adjusting bicycle wrench, marked with "Rogers Printz & Company" and "Warren PA." forged into the handle, with "Drop Forged Steel" forged into the back side.

The sliding sheath is stamped with "FITZALL" and "Trade Mark" in a diamond outline, along with a "Patented June 9, 1908 Apr. 26 1910" patent notice.

The overall length is 8.0 inches, and the finish is plain steel.

The first patent date refers to patent 890,146, filed by J.R. Long in 1908 and issued later that year.

The second patent date refers to patent 955,974, filed by J.R. Long in 1909 and issued in 1910.

Based on the history outlined in our article on the Standard Wrench & Tool Company, this wrench would have been produced by Standard Wrench and Tool operating from its factory in Providence, Rhode Island.

The markings on this example are a bit unexpected, as the "FITZALL" brand is generally associated with Standard Wrench & Tool, but the wrench body retains the earlier Rogers Printz markings. Our best guess is that this tool may have been made shortly after Standard Wrench & Tool took over the Rogers Printz wrench line.

Ronson Specialty Company

The Ronson Specialty Company was founded in 1909 by Louis V. Aronson and operated in Newark, New Jersey. The company was a maker of tools and automotive specialties and is best known for its "Ronson Wrench" set of stamped-steel wrenches.

Fig. 334. 1909 Notice for Ronson Specialty Company. [External Link]

Fig. 334 shows a notice of incorporation for Ronson Specialty, as published on page 54 of the December 30, 1909 issue of Motor Age.

Fig. 335. 1910 Ad for Ronson Wrench. [External Link]

Fig. 335 shows an ad for the Ronson wrench set, as published on page 745 of the March, 1910 edition of Automobile Dealer and Repairer.

The wrench set was described by patent 942,993, filed in 1909 by L.V. Aronson and issued later that year.

In 1910 Louis V. Aronson registered "Ronson" as Trademark #77,284.

Fig. 336. 1910 Notice for Ronson Wrench. [External Link]

Fig. 336 shows a notice for the Ronson wrench set, as published on page 1111 of the May, 1910 edition of Hardware Dealers' Magazine.

By December of 1915 the "Ronson Wrench" was being produced by the Art Metal Works, which operated at the same address as Ronson Specialty and which appears to have succeeded the prior company. By 1917 the Ronson Specialty Company had been dissolved.

Rosel, W.E. Company

The W.E. Rosel Company was a maker of automotive specialty tools operating in Columbus, Ohio. The company is currently known only for its "5 In 1" tool, which combined a spark-plug wrench, alligator wrench, and gap-setting gauge.

Fig. 337. 1920 Notice for Rosel "5 In 1" Specialty Wrench. [External Link]

Fig. 337 shows a 1920 notice for the Rosel "Five-in-One" tool, as published on page 72 of the May, 1920 edition of The Accessory and Garage Journal.

The text notes the company address as 858 South 17th Street in Columbus.

Selected Tools

Rosel "5 In 1" Specialty Wrench

Fig. 338. Rosel "5 In 1" Specialty Wrench, with Insets for Back Side and Side View, ca. 1919 to Early 1920s.

Fig. 338 shows a Rosel "5 In 1" specialty wrench, marked with "W.E. Rosel" and "Col. O." cast into the shank, with "5 In 1 Tool" and "Pat July 22 1919" cast into the back side.

The overall length is 7.5 inches, and the finish is plain steel.

The patent date refers to design patent D53,641, filed by W.E. Rosel in 1919 and issued later that year.

Scholler Manufacturing Company

The Scholler Manufacturing Company operated in Buffalo, New York as a maker of adjustable wrenches and possibly other tools. Published references indicate that the company was in operation by 1915 (or earlier) and remained in business at least through the 1920s.

Fig. 339. 1915 Notice for Scholler Adjustable Wrench. [External Link]

Fig. 339 shows a notice describing the Scholler adjustable wrenches, as published on page 167 of the October, 1915 issue of the Automobile Trade Journal.

The text notes that the jaws are offset by 22.5 degrees, and the wrenches were available in sizes from 4 to 10 inches.

Selected Tools

Scholler 8 Inch Adjustable Wrench

Fig. 340. Scholler 8 Inch Adjustable Wrench, with Insets for Side View and Marking Detail.

Fig. 340 shows a Scholler 8 inch adjustable wrench, marked with the Scholler name forged into the handle, with "Scholler Mfg. Co. Inc." and "Buffalo N.Y." forged into the back side.

The overall length is 8.2 inches, and the finish is plain steel.

The top inset shows a side view of the wrench, illustrating the relatively thick head and stepped rectangular keyway.

Scholler 10 Inch Adjustable Wrench

Fig. 341. Scholler 10 Inch Adjustable Wrench, with Insets for Side View and Marking Detail.

Fig. 341 shows a Scholler 10 inch adjustable wrench, marked with the Scholler name forged into the handle, with "The Scholler Mfg. Co." and "Buffalo N.Y." forged into the back side.

The overall length is 10.0 inches, and the maximum opening is 1.3 inches. The finish is plain steel.

The top inset shows a side view of the wrench, illustrating the relatively thick head and stepped rectangular keyway.

Schriver, O.P. & Company

O.P. Schriver & Company was a maker of pumps and other hardware items operating in Cincinnati, Ohio. A 1906 issue of the Hardware Dealer's Magazine noted the company as a maker of wire cloth and netting, and a 1907 report by the Ohio Secretary of State listed the company's products as "Pumps, etc.", with a capital stock of $20,000. The company's earlier address appears to have been at 208 Elm Street in Cincinnati, but by 1914 the address was being reported as 621 East Pearl Street. A 1918 bulletin by the Industrial Commission of Ohio reported a total of 25 employees at that time.

In later years the company produced a line of chain repair pliers described by patent 1,320,547, issued in 1919 to E.P. Happensack and assigned to the company.

Selected Tools

Schriver IXL 7 Inch Chain Repair Pliers

The next two figures show examples of the Schriver IXL 7 inch pliers, with minor differences in the forged-in markings.

Fig. 342. Schriver IXL 7 Inch Chain Repair Pliers, With Insets for Marking Detail.

Fig. 342 shows a pair of Schriver IXL 7 inch chain repair pliers, marked with "IXL Chain Plier Patented" and "Malleable Iron" forged into the handles, with "OP Schriver Co. Cin. O." and "1320547" forged into the undersides.

The overall length is 6.9 inches. The finish is plain steel with traces of a coppery paint, although it's not known whether the paint is original.

The pliers are marked with patent 1,320,547, filed by E.F. Happensack in 1919 and issued later that year.

Fig. 342B. Schriver IXL 7 Inch Chain Repair Pliers, With Insets for Marking Detail.

Fig. 342B shows another similar pair of Schriver IXL 7 inch chain repair pliers, marked with "IXL Chain Plier Patented" and "Malleable Iron" forged into the handles, with "OP Schriver Co." and "Cin. O." forged into the undersides.

The overall length is 7.0 inches, and the finish is plain steel.

The "Patented" marking refers to patent 1,320,547, filed by E.F. Happensack in 1919 and issued later that year.

Emil Schwarz Company

The Emil Schwarz Company was incorporated in Chicago in 1921 as a manufacturer and dealer in wrenches and tools.

Fig. 343A. 1921 Notice for Emil Schwarz Company. [External Link]

Fig. 343A shows a notice reporting the incorporation of the Emil Schwarz Company, as published on page 513 of the August 25, 1921 issue of The Iron Trade Review.

The text notes the capital stock as $150,000 and the incorporators were listed as Emil Schwarz, C.A. Schommer, and Frank Wilenski.

The company address was listed as 217 West Illinois Street in Chicago. The facility at this address appears to have been a large industrial building with multiple tenants, and the adjacent 219 West Illinois address is believed to have been part of the same facility.

The eponymous founder was a German immigrant who had come to the U.S. in 1903 and became a naturalized citizen in 1916. The other two founders were employees at Schwarz's other company, as detailed in the next section.

The Sanitary Bottle Washing Company

Schwarz had previously founded the Sanitary Bottle Washing Company at 219 West Illinois Street in Chicago, which made specialty equipment for bottling companies and screw machine products.

Fig. 343B. 1921 Directory Listing for Sanitary Bottle Washing Company. [External Link]

Fig. 343B shows a directory listing for the Sanitary Bottle Washing Company, as published on page 302 of the 1921 edition of the Directory of Illinois Manufacturers.

The directory entry notes Emil Schwarz as president and C.A. Schommer as secretary.

The inclusion of screw machine products in the company's production capabilities is highly relevant for the new wrench and tool business, as it shows that Emil Schwarz had access to production equipment that could make sockets and related parts.

Frank Wilenski was the superintendant of the Sanitary Bottle Washing operations, and we found a product testimonial from Wilenski with a photograph of an automatic screw machine in the company's shop.

The "ALL-IN-ONE" Trademark

In 1921, prior to incorporating his eponymous company, Emil Schwarz had operated as an individual to offer socket wrenches under the "All-in-One" brand. Schwarz probably used the machine shop facilities of his bottle-washing company for prototyping and limited production runs.

On April 7, 1921 Emil Schwarz filed a trademark application for "ALL-IN-ONE" for use with wrenches, with the first use date listed as March 8, 1921. The application received serial number 146,851 and was published on August 2, 1921, and the trademark was registered as #149,233 on December 6, 1921.

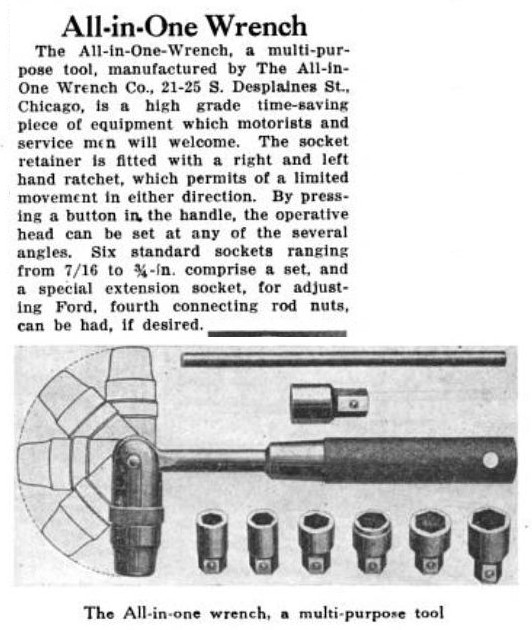

Fig. 343C. 1921 Notice for All-in-One Wrench Set.

By June of 1921 Emil Schwarz was apparently doing business as the All-in-One Wrench Company, with a location at 21-25 South Desplaines Avenue in Chicago.

Fig. 343C shows a notice for the All-in-One Wrench, as published on page 41 [External Link] of the June 30, 1921 issue of Motor Age. (The text has been rearranged to fit above the illustration.)

The illustration shows a ratchet handle with a swiveling head, a cross-bar, six standard sockets, and an "extension" socket. The socket set has some unusual features, including the swiveling ratchet head and the use of hexagonal drive tangs on the sockets.

We found a similar notice in the July 27, 1921 [External Link] issue of Motor World and in the September 1921 [External Link] issue of El automóvil americano, but haven't found any later advertisements for the wrench set.

Some of our readers will recognize this as similar to the "All-in-One" wrench set later sold by the German company Spezial Werkzeugfabrik Feuerbach (SWF) in the mid 1920s. We're still working on the connections between the two companies.

Based on online photographs, the Emil Schwarz Company is known to have offered "All-in-One" socket sets like the one illustrated in the notice above. Although not mentioned in the notice, the sets were available in two sizes: the smaller one as illustrated, and a larger version with additional components including an extension, a stub-handle ratchet, and more sockets. (The exact contents of the larger set are still somewhat uncertain.)

The sets were supplied in a wooden box with a paper label providing an illustration of the components and instructions for use, with the Emil Schwarz Company identifed as the maker.

The most distinctive features of the set were the swivel-head ratchet and the use of sockets with a male hexagonal drive tang. The ratchet was typically stamped "Pat. Appld For", but the specific patent (if any) is not known. (It's possible that the "patent" could refer to the pending trademark, which was filed in April and issued in December of 1921.)

The curious choice to use hexagonal drive tangs on the sockets may have been inspired by the socket tools of the Edgar C. Guthard "Billmont" company, which was operating in Chicago at the same time. However, the "All-in-One" sets used 5/8 hexagonal drive tangs instead of the 3/4 hexagonal tangs in the Billmont sets, so the sockets from the two companies were not interchangeable. The "All-in-One" sets were the first known use of 5/8 hexagonal male drive sockets, and (except for the German continuation) the only known later use was in the H & G "Universal Wrench" sets made by the Eastern Machine Screw Corporation.

Every socket set needs to provide a means of securing the sockets to a drive tool, and for a standard set the typical choice is to install a spring-loaded friction ball on the (male) drive tools, which is also economical since drive tools are less numerous than sockets. But for a set with male drive tangs on the sockets and female drive tools, it's usually not possible to install a friction ball in the wall of the drive tools. The choices then become less favorable: either install a friction ball on every socket (expensive), or find some kind of a friction device for the drive tools (awkward or inconvenient).

As can be seen in the illustration above, Emil Schwarz made the expensive choice to install friction balls on every socket. This would have increased the production costs, which were already higher than usual due to the extra material and machining required for the drive tangs on the sockets.

Apart from the issue of the male drive tangs, the sockets in the set were machined and cold-broached, the emerging standard at the time. Other companies selling machined and cold-broached sockets in 1921 included Will B. Lane ("Unique") and R.F. Sedgley ("Hexall"), as well as Blackhawk Manufacturing, Walden-Worcester, and the Snap-On Wrench Company. The first two companies sold inexpensive sets based on 1/2 hexagonal drive tools and would have been the most direct competition for Emil Schwarz, while the latter three were the leading makers of standard 1/2 square drive socket tools for service garages and auto mechanics.

Despite having launched its product, the Emil Schwarz Company disappeared quickly, with the only references in the trade press confined to 1921. It seems unlikely that the company would have failed outright — the $150,000 capital at incorporation was a very significant sum in 1921. Thus we are left with a mystery as to why the company vanished.

Another mystery is how the company managed to sell any products at all, since at this time (2026) no advertisements or catalog listings for the "All-in-One" sets have been found. If any of our readers have seen listings for these sets, please send us an email with the details!

Filling in the Gaps

Currently we don't have much information on the Emil Schwarz Company, but in this section we'll summarize what we do know and then make some extrapolations to see how the early "All-in-One" sets relate to the known later versions.

In the years leading up to 1921 Emil Schwarz was the president of the Sanitary Bottle Washing Company, which built specialty equipment for bottling companies and also offered screw machine products.

In the spring of 1921 Emil Schwarz as an individual developed the idea of the "All-in-One" wrench sets, and in April filed a trademark application for "ALL-IN-ONE". By June he was offering wrench sets as the All-in-One Wrench Company, and the published notice in Motor Age shows a ratchet handle with a swivel head, a cross-bar, and seven sockets. The illustration shows the sockets with an unusual feature, a hexagonal drive tang fitted with a friction ball.

Based on the published illustration, the components in the socket set would have been amenable to production by screw machine operations followed by light machining.

By August the Emil Schwarz Company had been incorporated by Emil Schwarz and two others, with a stated capital of $150,000. Wrench sets marked with the Emil Schwarz Company as manufacturer are known to have been produced, but no advertisements or other references to the company have been found in the trade press, apart from notices of the company's incorportion in 1921.

This is a fairly slim body of information, but let's explore it by trying to answer a few questions.

Q. Were the Emil Schwarz "All-in-One" sets actually made by SWF?
Socket sets very similar to the Emil Schwarz "All-in-One" sets are known to have been made by Spezial Werkzeugfabrik Feuerbach (SWF), a German company operating near Stuttgart. So it's obvious to inquire whether SWF also made the "All-in-One" sets introduced by Emil Schwarz in 1921.

This question has been explored on one of the tool message boards, and the implicit hypothesis is that Emil Schwarz would have been acting as the initial sales agent or distributor for the German manufacturer, who eventually decided to handle the marketing themselves.

This is a tidy hypothesis, but under closer examination several problems emerge. It turns out that SWF is still in business as a maker of wiper blades and auto accessories, and the history of the company says that it was formed in 1922, after the Emil Schwarz saga had already played out.

Another problem is that the known examples of Emil Schwarz "All-in-One" sets are not marked with "Made in Germany" or equivalent, as required by country of origin laws. A third problem is that the German "All-in-One" sets are typically marked with the German equivalent of "Patented" or "Patent Pending", but the patents in question were filed in 1924 and 1925, well after the Emil Schwarz era.

The final problem is that Schwarz had another business, the Sanitary Bottle Washing Company, which had production equipment including automatic screw machines. These facilities probably would have been sufficent for protyping and modest production of the "All-in-One" sets, so that no outside assistance would have been needed in the initial stages.
A: It's very unlikely that the Emil Schwarz "All-in-One" sets were made by SWF.

Q. Were the "All-in-One" sets made by Emil Schwarz or by a contract manufacturer?
Based on our most recent information, it's likely that the prototypes and early production of the sets would have been made by the facilities of Schwarz's other company, the Sanitary Bottle Washing Company.

The $150,000 capital raised by the Emil Schwarz Company suggests that the company planned to set up a substantial manufacturing operation. However, that would have taken time, and there should have been notices in the trade press for the construction of a new facility and purchases of machinery. No such notices have been found, suggesting that the company may have scaled back its plans and decided to use a contract manufacturer instead.

It's also possible that the volume of sales remained small enough that the bottle shop could handle the production, so that no outside help was needed.
A: Probably initially by the Sanitary Bottle Washing Company, but possibly later by a contract maker.

Q. Who was the contract manufacturer?
To explore this question further we have to assume that the anticipated volume of sales was such that a high-volume screw machine operator was needed. In 1921 there were many such operators, but we can offer an intriguing possibility by noting a possible connection with the Eastern Machine Screw Corporation, a major screw machine operator in New Haven, Connecticut.

The Emil Schwarz (and SWF) wrench sets use sockets with a 5/8 hexagonal drive tang, an unusual drive configuration with only one other known producer, the H & G Universal Wrench Set manufactured by Eastern Machine Screw.

The H & G set was announced in December of 1921 and advertised in early 1922, around the time that the Emil Schwarz Company was probably discontinuing its operations. This leads to the hypothesis that Emil Schwarz contracted with Eastern Machine Screw for the sockets (and possibly other components), and after the "All-in-One" sets were discontinued, Eastern Machine Screw decided to make their own set based on the same socket design.
A: If an outside manufacturer was used, the Eastern Machine Screw Corporation is a possibility.

Q. Why did the Emil Schwarz Company cease operations?
With so little information to go on, this section will be based on generalities, and the short answer would be underwhelming sales and low profit margins due to high production costs.

The market for socket sets was already highly competitive in 1921. The "All-in-One" sets were probably intended as in-vehicle tool kits, and as such would have faced competition from inexpensive 1/2-hex drive socket sets, as well as legacy pressed-steel socket sets.

The choice to use 5/8 hexagonal male drive sockets with individual friction balls meant that the sets were more expensive to produce than 1/2-hex drive sets, and were also incompatible with other sets on the market.

When Emil Schwarz realized that his socket sets were unlikely to gain traction in the market, he may have chosen to quietly close the company and return money to the investors.

Another possible factor is that Schwarz's other business, the Sanitary Bottle Washing Company, also appears to have failed around 1921. In the years up to 1920, there were a number of references in the trade press for the bottle washing company, but we didn't find any mention of the company after 1922. Since the bottle washing company was probably providing the production facilities for the socket company, its failure could have had a cascading effect.
A: The company probably closed quietly after facing poor sales prospects.

Q. How did "All-in-One" wrench sets end up being made by SWF?
We are still doing research on this question and hope to find evidence of a connection between Emil Schwarz and the founders of SWF. Since SWF appears to have been founded in 1922, we suspect that the event leading to the company's establishment may have been the transfer of the designs and property rights for the "All-in-One" set from Emil Schwarz to SWF.

A genealogy search found that Emil Schwarz was born in Germany on February 8, 1875 and came to the U.S. on May 10, 1903, then became a naturalized citizen on April 7, 1916. No death records were found, suggesting the possibility that he might have moved back to Germany following the failure of his businesses.

At this point the leading hypothesis is that Schwarz himself helped to establish SWF after returning to Germany, with the intention of producing the "All-in-One" set.
A: Still being investigated ...

Continuation of the "All-in-One" Socket Set

Through some mechanism not yet fully understood, after the failure of the Emil Schwarz Company the "All-in-One" sets reappeared as a product by SWF in Germany. Further information can be found in our article on Spezial Werkzeugfabrik Feuerbach (SWF).

Selected Tools

We have an example of a socket set identified as the Emil Schwarz version of the "All-in-One" set.

Emil Schwarz "All-in-One" Socket Set

Some decades ago we picked up a set of socket tools with male hexagonal drive sockets, an unusual design that we had previously seen only on an "H & G" Socket Set. With the extensive backlog here at Alloy Artifacts it was quite a while before we were able to study the set closely, but we can now see that the tools have an interesting place in the early history of socket tools.

We were able to identify the set as an Emil Schwarz Company "All-in-One" socket set based on notices in the trade press and online photographs of a similar set. The "All-in-One" sets were made in two versions, and our example is the larger of the two, as it includes a small stub-handle ratchet and more than six sockets.

Our set was acquired as just a bag of loose tools without the original box, so we can't present it with the full context that a box would provide.

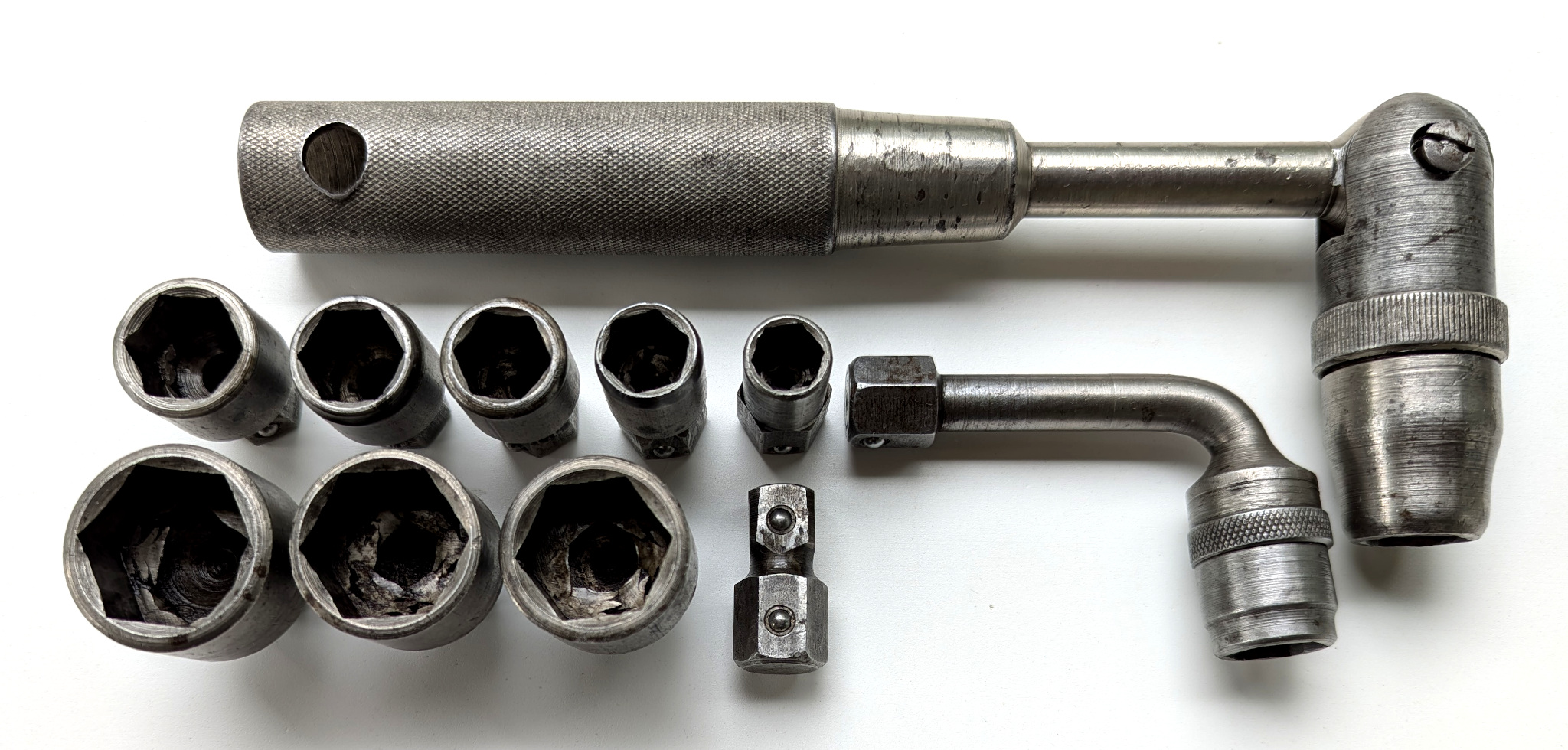

Fig. 343D. Emil Schwarz 5/8-Hex Drive "All-in-One" Socket Set, 1921.

Fig. 343D shows a group photo of the tools from the Emil Schwarz 5/8-hex drive "All-in-One" socket set, consisting of a swivel-head ratchet, a stub-handle ratchet, a 5/8 hexagonal to 1/2 square adapter, and eight sockets from 7/16 to 1 inch.

The socket sizes are, from the left in the front row, 1 inch, 15/16, and 7/8, then in the back row 11/16, 5/8, 9/16, 1/2, and 7/16. (Two sockets are believed to be missing, the 3/4 and 13/16 sizes.)

The sockets are unmarked and the stated sizes were based on measurements with digital calipers, which were typically about 0.02 inch oversize.

The tools in the set are unmarked, except for "PAT APPLD FOR" stamped on the shanks of the ratchets.

The presence of a patent notation on both ratchets suggests that the desired patent was for the ratchet mechanism, rather than than for the novel swivel-head of the larger ratchet. The patent in question has not been found after an extensive search, suggesting that it probably wasn't issued.

We haven't yet found documentation for the full contents of the larger Emil Schwarz set, but it is thought to be similar to the later "All-in-One" sets from SWF, except for the absence of a spark-plug socket. Based on a comparison with the SWF sets, our set is missing the cross-bar, extension, 3/4 socket, 13/16 socket, and possibly the screwdriver socket.

Note that our set does include a 5/8 hex to 1/2 square drive adapter (also included in the SWF sets), which would have allowed the set to use standard 1/2-drive sockets.

Emil Schwarz 5/8-Hex Drive Swivel-Head Ratchet from "All-in-One" Socket Set

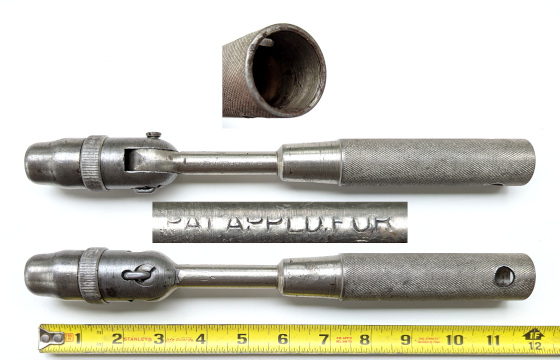

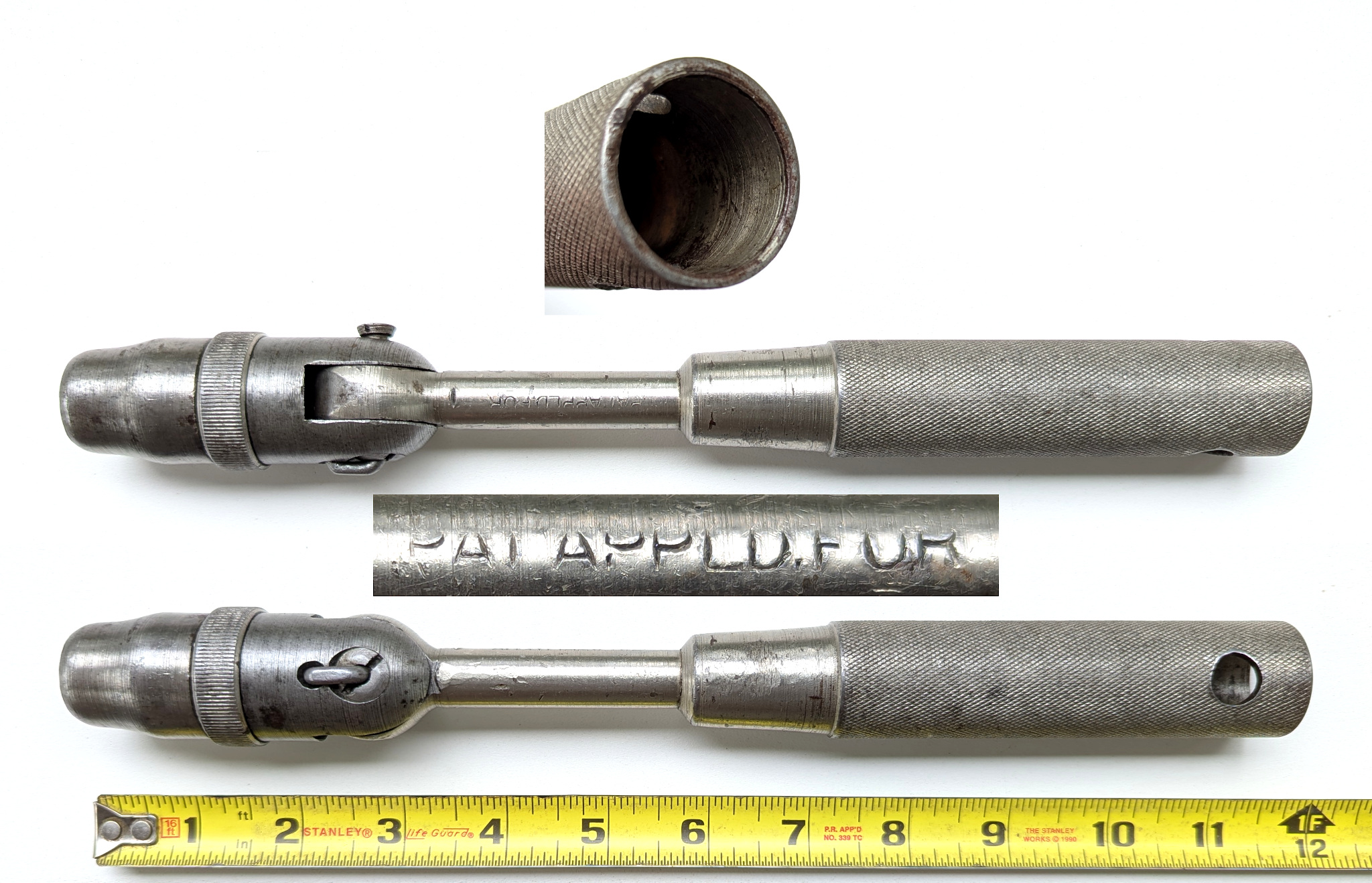

Fig. 343E. Emil Schwarz 5/8-Hex Drive Ratchet from "All-in-One" Set, with Insets for Side View, Marking Detail, and Construction Detail, 1921.

Fig. 343E shows the 5/8-hex drive ratchet from the "All-in-One" socket set, marked with "PAT APPLD FOR" stamped on the shank.

The middle inset shows a side view of the ratchet. Note how the flange on the handle fits into the slotted ratchet head, allowing 180 degrees of swivel motion.

The top inset shows a close-up of the end of the handle, which has been hollowed out to reduce weight and to allow tool storage.

The ratchet head is locked into place by a spring-loaded "J" hook, which fits into holes in the handle flange.

The ratchet handle has a hole drilled for a cross-bar to allow use as a Tee-handle.

The overall length (fully extended) is 11.5 inches, and the finish is nickel plating.

One detail to note is that the inner bore at the end of the handle is smooth, without notches on the side (see top inset). Later sets from SWF included a spark-plug socket with raised ridges on the side, which fit into two opposing notches at the end of the handle. This unusual arrangement effectively turned the handle into a deep socket with clearance for the tip of the spark plug.

The ratchet mechanism is very coarse, with only four positions, and the 5/8 socket is permanently attached to the ratchet head.

One novel feature of the ratchet is the attachment of the head by means of a flange on the handle fitting into a milled slot on the ratchet head, allowing 180 degrees of motion. This construction brilliantly anticipates the "Outside Head" design of the P&C Flex Head Handles introduced five years later, and the ratchet could be considered as a flex handle with a permanently attached ratchet adapter.

Another novel feature is the use of a spring-loaded "J" hook to lock the position of the head. The hook is installed through an axial hole in the pivot screw, and the tip of the "J" drops into holes in the flange at the 0°, 45°, and 90° positions.

We noted shows signs of extensive use of this ratchet, such as marring of the edges of the cross-bar hole, and wear on the tip of the "J" hook to the point that it no longer engages the locking holes. Despite the heavy use, the tool has held up well and the ratchet mechanism is still functional.

Emil Schwarz 5/8-Hex Drive Stub-Handle Ratchet from "All-in-One" Socket Set

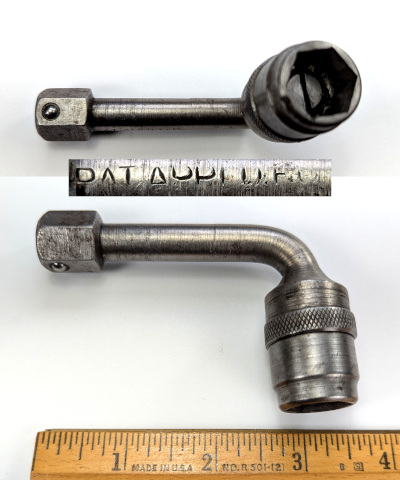

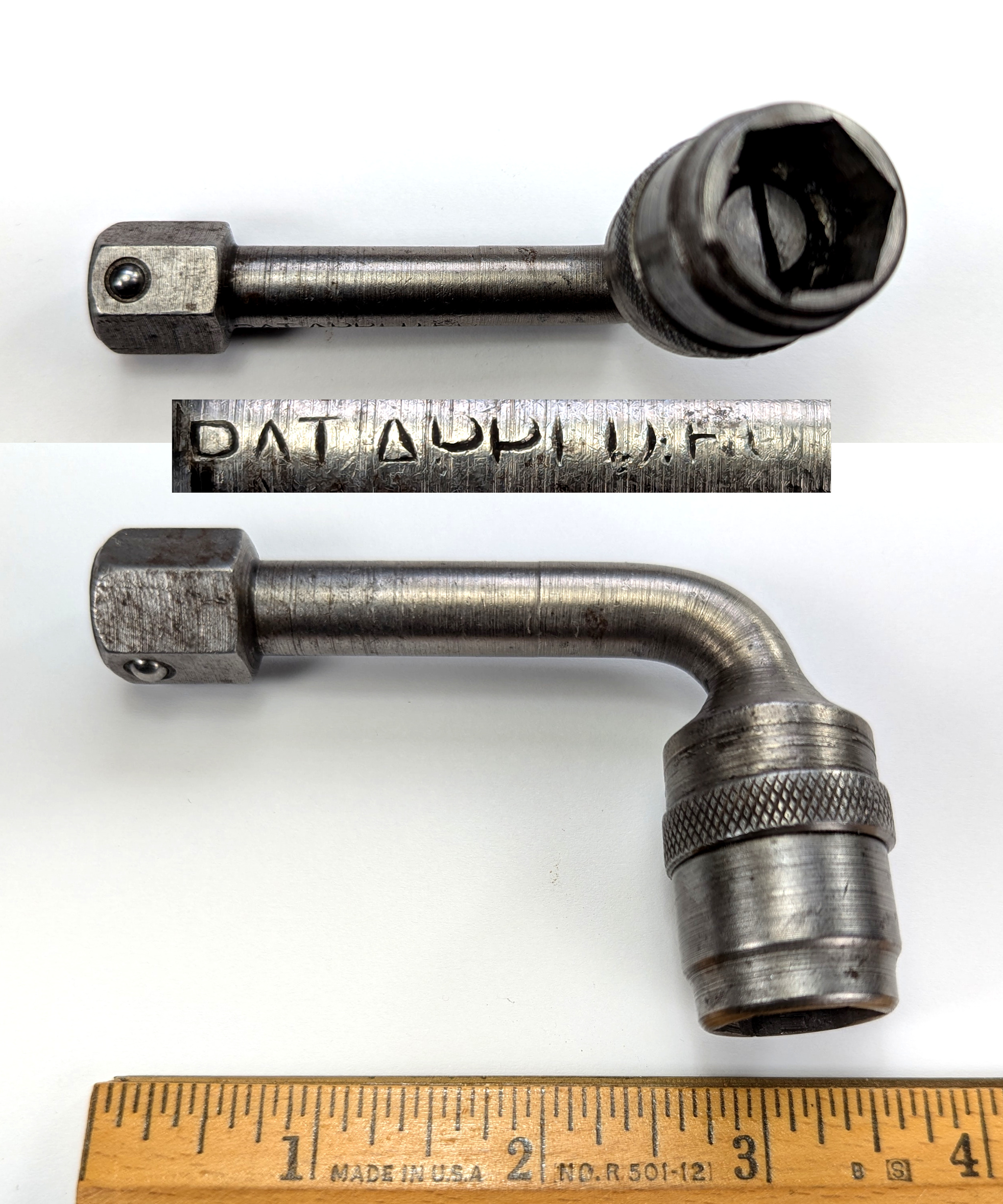

Fig. 343F. Emil Schwarz 5/8-Hex Drive Stub-Handle Ratchet from "All-in-One" Set, with Insets for Top View and Marking Detail, 1921.

Fig. 343F shows the 5/8-hex drive stub-handle ratchet from the "All-in-One" socket set, marked with "PAT APPLD FOR" stamped on the shank.

The top inset shows the interior of the 5/8 socket on the ratchet head, with the screw securing the ratchet visible. Note that the outer wall of the socket has been turned down near the service end, in order to provide extra clearance.

This ratchet was included in the set as a specialty tool for servicing the infamous fourth connecting rod bolts on the Model T. In this application the 5/8 ratchet socket would engage the connecting rod bolt directly, rather than using an inserted socket.

The end of the stub handle is fitted with a 5/8 hexagonal stud, which at first seems a bit odd, since there would be no reason to rotate the ratchet around this axis. However, the hex stud would have allowed the extension to be connected for extra leverage, although from an engineering standpoint this is a bit dubious. Drive tools are designed for torsional loads, and placing lateral forces on a drive connection would concentrate strain on one wall of the female connector, possibly leading to failure.

An example of another tool designed for servicing the Model T fourth connecting rod bolts can be seen as the Mossberg 624 Ratcheting Socket Wrench. Note that the socket on the Mossberg tool has been chamfered on the service end, a requirement due to the small clearance around the connecting rod bolts.

Emil Schwarz 5/8-Hex to 1/2 Square Drive Adapter from "All-in-One" Socket Set

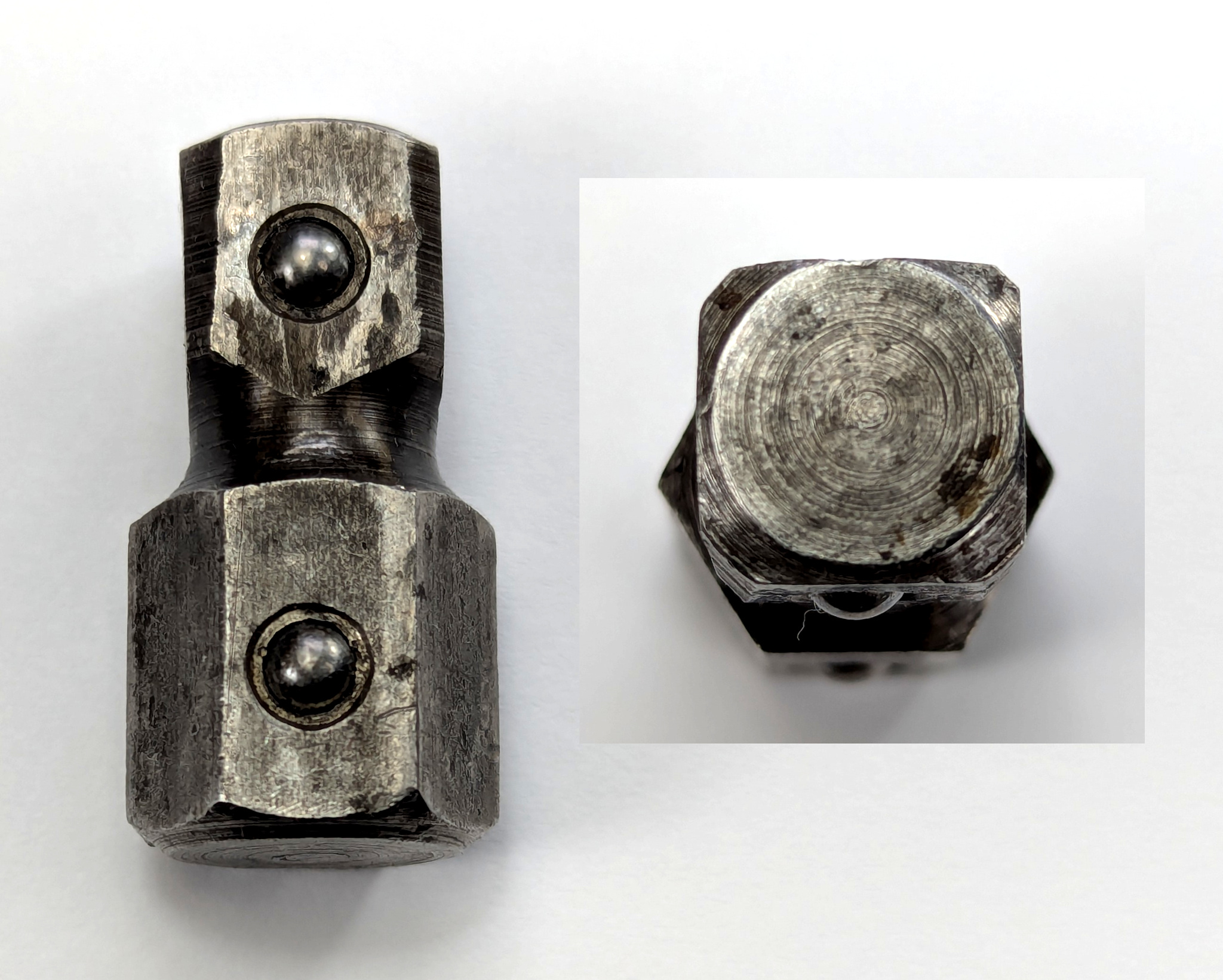

Fig. 343G. Emil Schwarz 5/8-Hex to 1/2 Square Drive Adapter from "All-in-One" Set, with Inset for Top View, 1921.

Fig. 343G shows the 5/8-hex to 1/2 square drive adapter from the "All-in-One" socket set.

The overall height is 1.4 inches, and the finish is plain steel.

This small tool was an important addition to the set, as it meant that the drive tools could be used with standard 1/2-drive sockets, thereby providing access to additional socket sizes or replacements.

Emil Schwarz 5/8-Hex Drive Hexagonal Sockets from "All-in-One" Socket Set

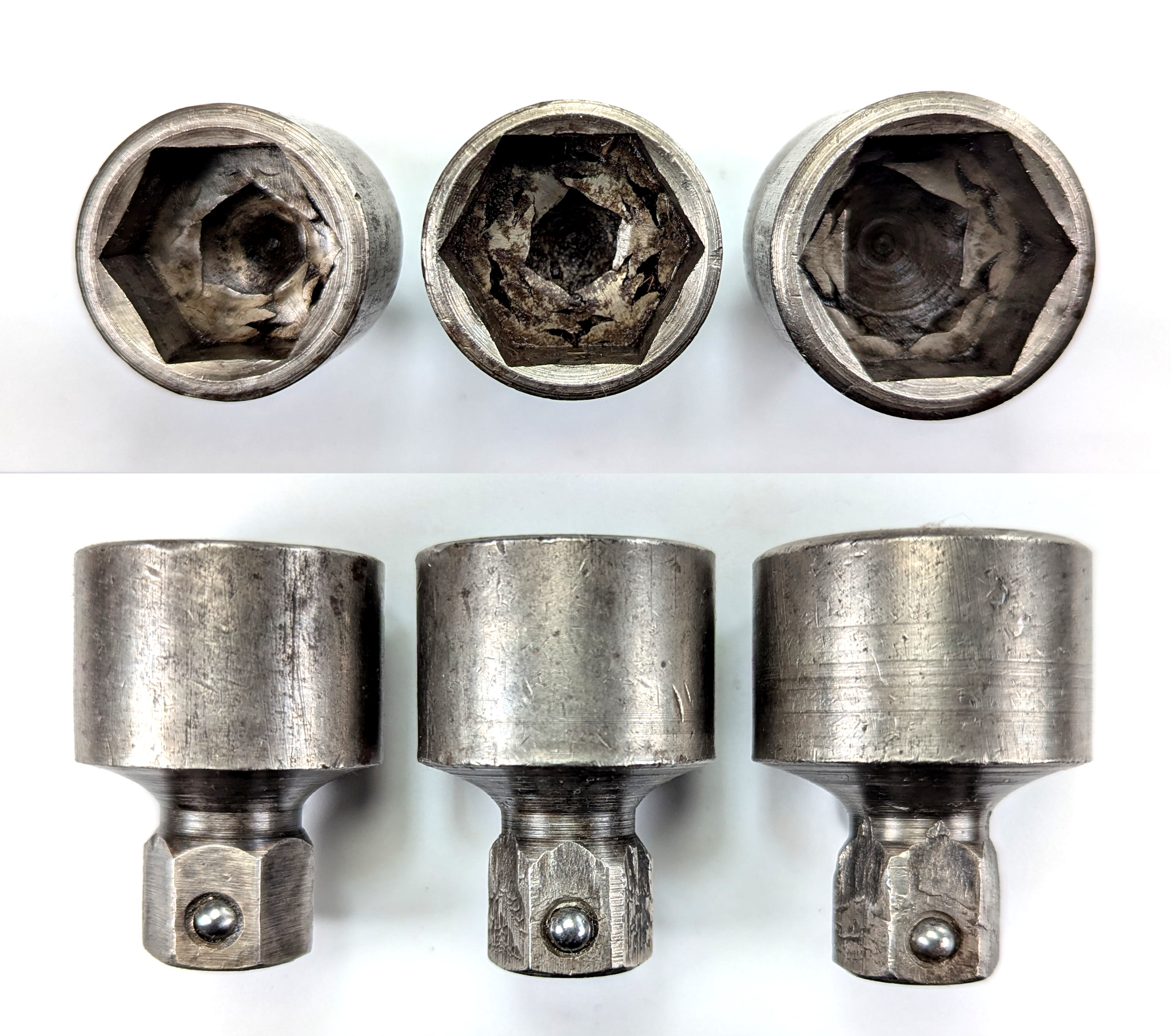

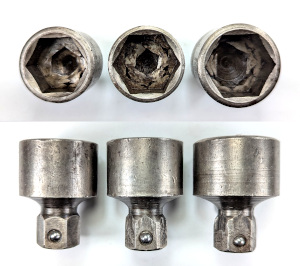

Fig. 343H. Emil Schwarz 5/8-Hex Drive Hexagonal Sockets from "All-in-One" Set, with Inset for Top View, 1921.

Fig. 343H shows the three largest 5/8-hex drive sockets from the "All-in-One" socket set. Note that the hexagonal drive tangs are each fitted with a friction ball.

The nominal socket sizes are, from the left, 7/8, 15/16, and 1 inch. The sizes are not marked on the sockets, so we measured the across-flats sizes with digital calipers as 0.89, 0.96, and 1.01 inches.

The top inset shows the interior of the sockets, illustrating the cold-broached construction. Note that the shaved metal from the broaching forms an irregular shelf below the broached area.

Emil Schwarz 5/8-Hex Drive 5/8 Hexagonal Socket from "All-in-One" Socket Set

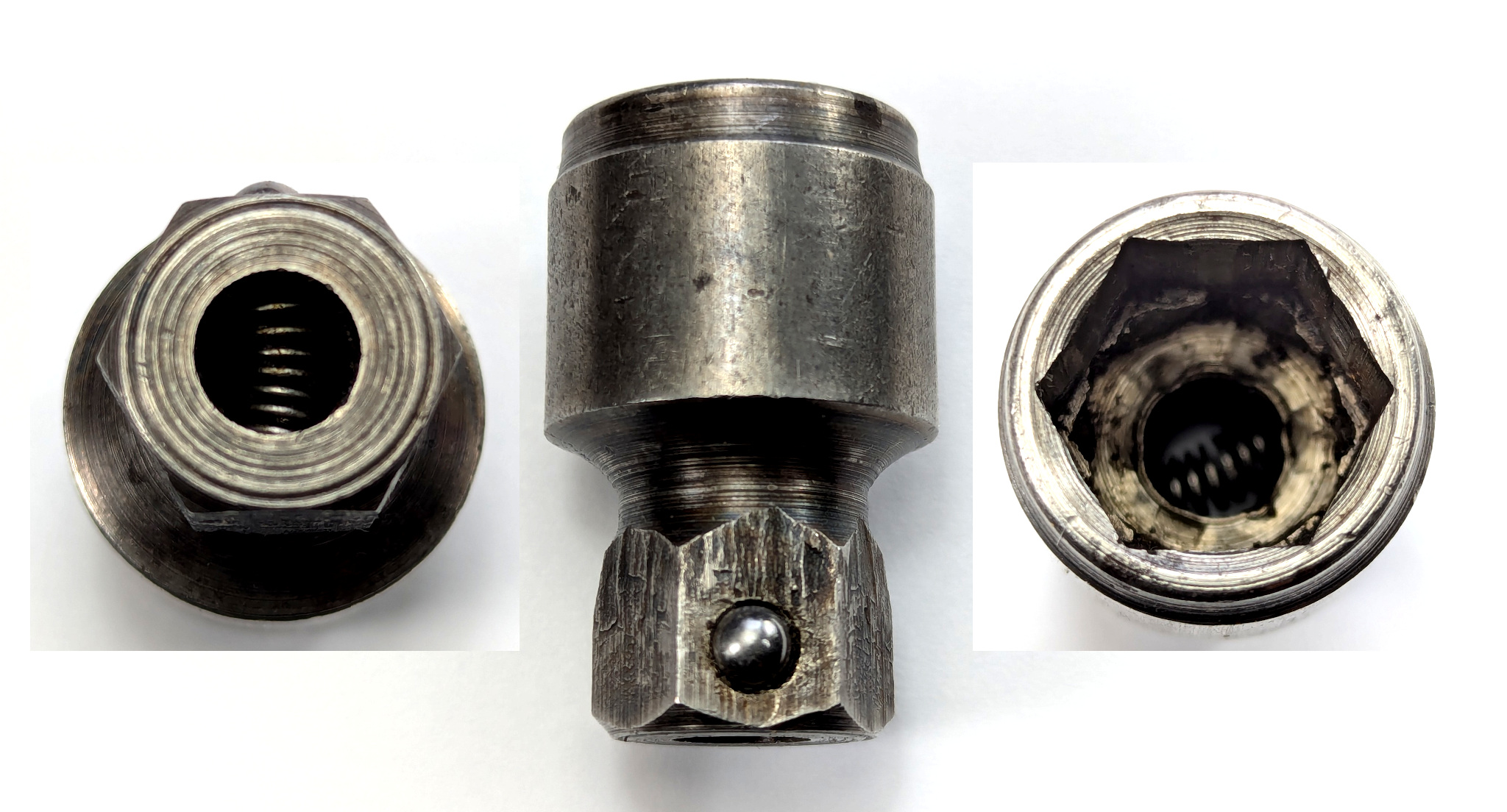

Fig. 343I. Emil Schwarz 5/8-Hex Drive 5/8 Hexagonal Socket from "All-in-One" Set, with Insets for Bottom and Top View, 1921.

Fig. 343I shows the 5/8-hex drive 5/8 hexagonal socket from the "All-in-One" socket set. This socket differs from the others in that the outside of the service end has been chamfered slightly in order to provide extra clearance.

The left inset shows a bottom view of the socket, revealing that a clearance hole has been drilled through the drive tang, therby exposing the spring for the friction ball.

The right inset shows the interior of the socket, illustrating the cold-broached construction.

Close examination of the illustration in Fig. 343C reveals the same chamfered lip on the 5/8 socket, indicating that this feature had been planned for the "All-in-One" set from the beginning. This special modification of the 5/8 socket would have allowed it to be used for servicing the connecting rod bolts of the Model T.

We're not sure why this socket has a hole through the drive tang, as it doesn't seem to have any functional purpose. But the 11/16 socket also has a clearance hole, and we've seen this odd feature reported for another Emil Schwarz set.

Service Engineering Corporation

More than a decade ago we acquired two socket sets with "Service" embossed on the top cover, but at the time didn't recognize "Service" as part of a company's name, and the sets languished in the vaults as "mystery" tools. Recently though (2021) we noticed a "Boston 27" address forged into the ratchet handle, and this address turned out to be the clue needed to discover the notice in Fig. 346, leading us to the Service Engineering Corporation.

Service Engineering was a maker of automotive socket sets operating in Boston during the early 1920s, with the company's address being noted as 568 East First Street, Boston 27, Massachusetts in a 1922 publication.

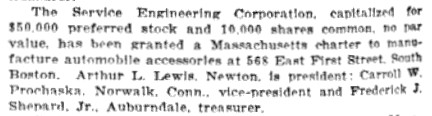

Fig. 344. 1921 Notice for Service Engineering Corporation.

Fig. 344 shows a notice reporting the formation of the Service Engineering Corporation, as published on page 1704 [External Link] of the December 29, 1921 issue of The Iron Age.

The text lists the company officers as Arthur L. Lewis president, Carroll W. Prochaska vice-president, and Frederick J. Shepard, Jr. treasurer.

Fig. 345. 1922 Notice for Service Engineering Corporation. [External Link]

Fig. 345 shows a slightly later notice for the company, found on page 428 of a 1922 Massachusetts Manufacturers' Directory.

The directory listing notes that the company had 10 employees and mentions an additional officer, E.S. Church as secretary.

Fig. 346. 1922 Notice for Service Wrench Set.

Fig. 346 shows a notice for a Service Wrench Set No. 1, as published on page 86 [External Link] of the May 1, 1922 issue of the Automobile Trade Journal. The illustration shows the set in a clam-shell metal case, and the description notes the use of alloy steel for the sockets, universal joint, and ratchet gear.

A similar notice was found on page 43 of the February 23, 1922 issue of Motor Age, and another notice (with an illustration on the following page) was found on page 28 of the April 15, 1922 issue of The Commercial Vehicle. These earlier notices have illustrations with just the tools, possibly because the cases weren't ready yet.

Apart from these notices, we haven't found any further information for the company — not even an advertisement!

The lack of advertisements may be a clue that the company pursued a different route for sales. Perhaps they had a contract to supply toolkits for large commercial or industrial customers, or maybe this was a repair kit for a fleet of taxis.

The Lewis-Shepard Company

While looking for more information on Service Engineering, we ran into a related company called the Lewis-Shepard Company. Lewis-Shepard was run by two of the principals at Service Engineering and shared a contiguous address on East First Street in Boston.

Fig. 347. 1922 Advertisement for Lewis-Shepard Company. [External Link]

Fig. 347 shows an ad for Lewis-Shepard, published on page 88 of the December, 1922 issue of Industrial Management. As can be seen from the ad, Lewis-Shepard was in the materials-handling business and made jacks, lift trucks, wheeled dollies, and so on.

Lewis-Shepard was a substantial operation with branch offices in other cities. The company filed trademarks from before the 1920s into the 1940s and beyond — for example, the company received trademark #119,194 for "Jacklift" on October 30 of 1917. Lewis-Shepard is actually still in operation today as a division of Hyster.

Materials handling is a bit far afield from our primary interests here at Alloy Artifacts, but the discovery of Lewis-Shepard is immediately relevant for Service Engineering. First of all it shows that the management would have had extensive contacts with large commercial and industrial companies — the kind of businesses that needed Lewis-Shepard products. Maybe it will even turn out that the Service socket sets were toolkits for early fork-lift trucks.

Secondly, we can assume that as a maker of heavy industrial equipment, Lewis-Shepard would have had substantial engineering and production resources.

And for one last point, since we haven't discovered the eventual fate of Service Engineering, the existence of a related company raises the possibility that Service could have merged quietly into the bigger company, avoiding the messiness of a bankruptcy auction and corporate dissolution.

Readers familiar with King Pressed Steel may have noted some similarities with the present company and wondered about a connection. There are some obvious similarities — both were obscure companies operating in the Greater Boston area in the 1920s, both sold socket sets in clam-shell metal cases with wooden organizers, and their sockets have a similar shape with a radius groove at the base. We can offer a fairly simple explanation for the similarities of their socket sets.

When Service Engineering was designing their socket set in late 1921, they would have needed to consider some kind of case for the tools. King Pressed Steel is known to have advertised their metal stamping services, and since they were located nearby, it's reasonable to think that Service Engineering would have contacted King.

At this time King was producing socket sets in clam-shell cases with a chessboard design on top, and presumably they would have shown examples to Service Engineering. Obviously Service Engineering liked the design, so they could have contracted with King Pressed Steel for similar cases with "Service" embossed on top.

The similarity of the sockets is also easy to explain. Since both companies were small and new to the socket business, both almost certainly would have used a screw machine company to produce their socket blanks. So whether Service Engineering used the same screw machine contractor or not, sockets of this design would have been easy to produce on an automatic screw machine.

Beyond the superficial similarities of the companies' products are some significant differences. The King Pressed Steel sets were 7/16-hex drive and were suitable mostly for light-duty work, and didn't even include a ratchet.

In contrast, Service Engineering designed their set with a greater awareness of the demands of maintenance tools. The set used a heavier 1/2-hex drive, and the company went to the trouble of designing a combination-tool ratchet made with a custom drop-forging. (Even the adapter plug for their asymmetrical universal was drop-forged.)

More importantly, based on the published specs the company used alloy steel for the sockets and other parts, which would make Service Engineering the first company to produce alloy sockets. [Editor's note: After this article was written, we discovered that Abegg & Reinhold offered nickel alloy steel sockets in 1920.]

It may seem remarkable that a virtually unknown company would have been the first to produce alloy-steel socket sets, but sometimes history takes surprising turns. We hope our readers will enjoy exploring this long-forgotten company's products.

Selected Tools

Service 1/2-Hex Drive No. 1 Socket Set

We have two socket sets from Service Engineering, a No. 1 set closely matching the illustration in Fig. 346, and another (possibly later) set with a different and interesting Peerless ratchet. Both sets were supplied in metal boxes with "Service" embossed on the lid, with a wooden insert to organize the sockets and tools.

Fig. 348. Service 1/2-Hex Drive No. 1 Socket Set, ca. 1922.

Fig. 348 shows a 1/2-hex drive Service No. 1 socket set, consisting of a ratchet, two drive plugs, an extension, a double-female universal, and 9 hexagon sockets. The set as shown is missing its screwdriver bit.

The socket sizes are, from the left, 1 inch, 7/8, 13/16, 3/4, 11/16, 5/8, 9/16, 1/2, and 7/16. The sockets are numbered from 9 to 1, but are not marked with the fractional sizes.

Fig. 349. Top Cover of Service No. 1 Socket Set, ca. 1922.

Fig. 349 shows the top cover of the Service No. 1 socket set, with "Service" embossed in block letters in the center. The case still retains some of its original black paint.

The dimensions of the case are 11.0 inches wide by 4.8 inches deep by 1.4 inches high.

The set as acquired was missing the universal, the screwdriver bit, and one socket, but also came with a mystery piece. The drive stud in the ratchet was a 1/2-hex to 5/8-hex adapter plug, with no obvious function except to secure the ratchet head in the provided hole. We assumed it was just an interpolation by the former owner.

Then when we went to borrow a universal from the second set, we found that the piece that looked like a universal was actually a 1/2-hex drive universal socket. For a moment it looked like neither set had a working universal, until we remembered the odd adapter plug in the first set. It fit the universal socket perfectly and the design was then clear: instead of making a conventional symmetrical universal, the company designed an asymmetrical universal and added an adapter plug! This allowed the set to include both the expected drive universal as well as a universal socket with a useful opening size.

Service 1/2-Hex Drive Ratchet

Fig. 350. Service 1/2-Hex Drive Ratchet, with Insets for Back Side and Side View, ca. 1922.

Fig. 350 shows the 1/2-hex drive Service ratchet and drive plug from the No. 1 set. The paneled handle is marked with "Service" and "Pat. Appd." forged into the front, with "Boston 27" and "Mass" forged into the back side.

The overall length is 8.9 inches, and the finish is plain steel.

The ratchet mechanism has a relatively stiff and coarse action with 12 teeth on the gear.

The forged ratchet handle provides two openings broached for 1/2-hex drive, one at the center and one at the end, and these openings allow the ratchet handle to function as a Tee or Ell handle with a drive plug or extension. Effectively the ratchet is a type of combination tool, allowing more functionality within the limits of a compact tool kit.

Since the ratchet mechanism itself is rather pedestrian (even for the 1920s), we suspect that the patent application may have made claims about the ratchet handle as a combination tool. The patent has not yet been found.

Service 1/2-Hex Drive 10 Inch Extension

Fig. 351. Service 1/2-Hex Drive 10 Inch Extension, ca. 1922.

Fig. 351 shows the unmarked 1/2-hex drive 10 inch extension from the Service No. 1 set.

The overall length is 9.8 inches, and the finish is plain steel. The extension uses an embedded steel ball at each end as a stop.

Service 1/2-Hex Drive Universal and Adapter Plug

This next figure shows the unusual two-piece universal from the Service No. 1 set.

Fig. 352. Service 1/2-Hex Drive Universal and Adapter Plug, ca. 1922.

Fig. 352 shows the unmarked 1/2-hex drive universal and adapter plug from the Service No. 1 set. The tool consists of two pieces: a 1/2-hex drive 5/8 universal socket and a 5/8-hex to 1/2-hex drive adapter.

The overall length is 2.8 inches, and the finish is plain steel.

Fig. 353. Service 1/2-Hex Drive Adapter Plug, ca. 1922.

Fig. 353 shows the unmarked 1/2-hex to 5/8-hex adapter plug. Note the parting line visible on the right end, indicating that the adapter was drop-forged rather than machined.

The overall length is 1.1 inches, and the finish is plain steel.

The unusual combination design of this universal allowed the set to include a useful universal socket as well as a fully functional universal.

Service 1/2-Hex Drive Sockets

Fig. 354. Service 1/2-Hex Drive Sockets, ca. 1922.

Fig. 354 shows the three largest 1/2-hex drive sockets from the Service No. 1 set. The socket sizes are, from the left, 1 Inch, 7/8, and 13/16.

The sockets are numbered sequentially but are not marked with the fractional size.

Note the relatively clean interior of the sockets, with no chips or fragments from the broaching process. The sockets were designed with a machined recess below the broached area, which allowed the metal chips to break off during broaching.

Southington Manufacturing Company

The Southington Manufacturing Company was founded in 1909 in Southington, Connecticut as a maker of tools, automobile tool kits, and forgings.

Fig. 355. 1909 Notice for Southington Manufacturing Company. [External Link]

Fig. 355 shows a notice of the founding of Southington Manufacturing, as published on page 1807 of the June 3, 1909 issue of The Iron Age.

Fig. 356. 1912 Notice of Incorporation for Southington Manufacturing Company. [External Link]

Fig. 356 shows a notice of the incorporation of Southington Manufacturing, as published on page 827 of the march 28, 1912 issue of The Iron Age.

Fig. 357. 1912 Advertisement for Southington Mfg. Screwdriver. [External Link]

Fig. 357 shows an ad for Southington "bolt head" screwdrivers, as published on page 1135 of the November, 1912 issue of the Hardware Dealers' Magazine.

Fig. 358. 1922 Advertisement for Southington Manufacturing Company. [External Link]

Fig. 358 shows an ad illustrating an S-shaped wrench, as published on page 1142 of the June, 1922 edition of the Hardware Dealers' Magazine.

The ad shows the SMCo logo on each side, with "S" over "M.Co" inside a circle.

Tool Identification

Southington Manufacturing marked its tools with an SMCo-Circle forge mark, as seen in the next figure.

SMCo-Circle Logo

Fig. 359. SMCo-Circle Logo.

Fig. 359 shows a close-up of the SMCO-Circle logo from the 1922 ad in the figure above.

Selected Tools

SMCo 504 7/8x1 S-Shaped Open-End Wrench

Fig. 360. SMCo 504 7/8x1 S-Shaped Open-End Wrench, with Inset for Marking Detail, ca. 1910s to 1920s.

Fig. 360 shows a Southington "SMCo" 7/8x1 S-Shaped open-end wrench, marked with "Drop Forged" and the SMCo logo forged into the shank, and with "504" forged into the back side [not shown].

The overall length is 10.2 inches, and the finish is plain steel.

The inset shows a close-up of the SMCO logo on the shank, although it's not very clear.

Specialty Tools, Inc.

Specialty Tools, Inc. operated in Oklahoma City, Oklahoma as the maker of a "Ratchet Action Speed Wrench", a type of open-end wrench with one of the jaws cut away to allow a ratchet-like action. The wrenches were based on patent 3,762,244, filed by James P. Evans in 1971 and issued in 1973.

The design described by the Evans patent is very similar to the 1953 Wilder patent 2,652,735, which was used for the Speed-Hed wrenches generally attributed to Thorsen but manufactured by Vlchek.

Selected Tools

[Specialty Tools] SW-1003 5/8x11/16 Speed Wrench

Fig. 361. [Specialty Tools] SW-1003 5/8x11/16 Speed Wrench, with Inset for Back Side, ca. Early 1970s.

Fig. 361 shows a [Specialty Tools] SW-1003 5/8x11/16 speed wrench, stamped "Ratchet Action Speed Wrench" on the raised panel, with "USA" and "Pats. Pending" on the back panel.

The overall length is 7.5 inches, and the finish is chrome plating.

The pending status refers to patent 3,762,244, filed by James P. Evans in 1971 and issued in 1973. (This patent was a continuation of an earlier application in 1970.)

Spring Leaf Lubricator Company

The Spring Leaf Lubricator Company operated in Ann Arbor, Michigan as the maker of Knowlson brand spring leaf spreaders.

The company was in business by 1912, based on a notice in the November 23, 1912 issue of Automobile Topics announcing their spring leaf spreader tool. Other public notices and advertisements indicate that the company remained in business at least into the early 1920s.

Fig. 362. 1915 Advertisement for Spring Leaf Lubricator Company.

The scan in Fig. 362 shows an ad for the company's Knowlson No. 1 spring leaf spreader, as published on page 157 [External Link] of the October, 1915 issue of Motor.

By 1918 the company was producing a slightly smaller Knowlson No. 3 spring spreader as well.

The Knowlson spring spreaders were based on patent 1,108,111, filed by C.F. Adamson in 1912 and issued on August 18, 1914, and patent 1,142,280, filed by J.H. Stevenson and F. Knowlson in 1912 and issued on June 8, 1915.

Selected Tools

Knowlson No. 3 Spring Leaf Spreader

Fig. 363. Knowlson No. 3 Spring Leaf Spreader, ca. 1918 to Early 1920s.

Fig. 363 shows a Knowlson No. 3 spring leaf spreader, marked with "Knowlson No. 3" and "Pat. Aug 18 1914" forged (or cast) into the body.

The overall length is 8.0 inches fully extended, and the length of the crossbar is 3.8 inches. The finish is plain steel.

The patent date refers to patent 1,108,111, issued to C.F. Adamson in 1914.

In use, the chisel points would be placed between the leaves of the spring and the screw tightened to force the leaves apart.

Once the spring leaves were separated, a suitable lubricant could then be applied to the springs. (The company recommended a mixture of heavy grease and graphite.)

Standard Wrench & Tool Company

The Standard Wrench & Tool Company was a drop-forge operator in Providence, Rhode Island and is best known as the maker of FITZALL wedge-adjusting nut and pipe wrenches. The dates of operation for the company are a bit uncertain, but it appears to have operated only briefly, from around 1911 to late 1913. (A reference in a 1918 engineering directory is likely just a stale listing.)

The FITZALL wedge-adjusting wrench was based on patents issued to John R. Long, and had previously been offered by Rogers, Printz & Company of Warren, Pennsylvania. The connection between Rogers Printz and Standard Wrench turns out to be a bit convoluted.

Fig. 364. 1911 Notice of Succession by Standard Wrench. [External Link]

Fig. 364 shows a notice of the succession by Standard Wrench to the wrench business of Rogers Printz, as published on page 323 of the July, 1911 edition of Mill Supplies.

Fig. 365. 1915 Court Report for ROREN vs. UNION. [External Link]

Fig. 365 provides background information on Standard Wrench & Tool in a summary of a court decision for ROREN DROP FORGING COMPANY vs. UNION MANUFACTURING AND DROP FORGING COMPANY, as published starting on page 396 of the 1915 Reports of Cases Argued and Determined in the Appellate for the Rhode Island Supreme Court.

According to the court report, in 1910 Rogers, Printz & Company signed a contract for $60,000 with Roren Drop Forging for the production of FITZALL nut and pipe wrenches.

At the time Roren had agreed to sell its plant in Providence to Union Manufacturing and Drop Forging, so the Rogers Printz contract was transferred to Union Manufacturing, but with the stipulation that a portion of the fees would be paid to Roren to cover the foregone profit. (A dispute over these fees lead to a lawsuit and ultimately to the court decision.)

Some time later Union Manufacturing fell into bankruptcy, and the assets of the company (including the Rogers Printz contract) were purchased by Standard Wrench & Tool. So at this point Standard Wrench had become the contract manufacturer of the FITZALL wrenches, and by July of 1911 had reached an agreement to acquire the "Arpeco" wrench business from Rogers Printz.

The FITZALL Wrench

The February 8, 1912 issue of The Automobile includes a description of the FITZALL wedge-adjusting wrench on page 453 [External Link], with an illustration on the previous page.

Fig. 366. 1912 Ad for FITZALL Wedge-Adjusting Wrench.

The scan in Fig. 366 shows an ad for the FITZALL wrench, as published on page 130 [External Link] of the April 5, 1912 edition of The Hardware Reporter.

The ad notes that the wrenches were available in both nut and pipe wrench versions, with the latter having a serrated upper jaw.

In addition, the text notes that the upper jaw of the pipe wrench was replaceable.

Fig. 367. 1912 Notice for FITZALL Wedge-Adjusting Wrench.

The composite scan in Fig. 367 provides a more detailed description of the FITZALL wrench, as published on page 60 [External Link] of the August, 1912 issue of Engineering Review.

Financial Problems

By late in 1913 Standard Wrench had run into financial trouble and its creditors petitioned for bankruptcy.

Fig. 368. 1913 Notice of Petition for Bankruptcy. [External Link]

Fig. 368 shows a notice of a petition for bankruptcy by the creditors of Standard Wrench, as published on page 360 of the August 21, 1913 issue of The Iron Trade Review.

Fig. 369. 1913 Notice of Bankruptcy Auction for Standard Wrench & Tool. [External Link]

Fig. 369 shows a notice of a pending bankruptcy auction for Standard Wrench & Tool, as published on page 101 of the November 25, 1913 issue of the Automobile Journal.

The text notes William B. Greenough as the Trustee in Bankruptcy for Standard Wrench & Tool. In his role as Trustee, Greenough had to stand in as the defendant in the court case cited previously.

Selected Tools

Standard Wrench "FITZALL" Wedge-Adjusting Wrench

Fig. 370. Standard Wrench FITZALL Wedge-Adjusting Wrench, with Insets for Side View and Marking Detail, ca. 1911-1913.

Fig. 370 shows a Standard Wrench "FITZALL" wedge-adjusting nut wrench, marked with "Standard Wrench & Tool Co." and "Providence R.I. U.S.A." forged into the shank. The adjusting sleeve is stamped "Trade FITZALL Mark" inside a diamond outline, with "Patented June 9, 1908 Apr. 26, 1910" below (see inset).

The opposite side of the shank is also marked "Drop Forged Steel' (not shown).

The overall length is 7.0 inches, and the finish is plain steel.

The first patent date refers to patent 890,146, filed by J.R. Long in 1908. The second patent date refers to patent 955,974, filed by J.R. Long in 1909 and issued in 1910.

Despite the "Trade Mark" notation on this wrench, no trademarks for Standard Wrench & Tool have been found.

Stephens Wrench Company

In 1909 H.E. Stephens received patent 943,757 for an open-end wrench with an adjustable offset angle.

Fig. 371. 1911 Notice for Stephens Wrench Company.

Fig. 371 shows a notice describing the operation of the Stephens wrench, as published on page 39 of the April 13, 1911 issue of Motor Age.

The maker is identified as the Stephens Wrench Company of Chicago.

Fig. 372. 1912 Ad for Stephens Ratchet Wrench.

Fig. 372 shows an ad for the Stephens ratchet wrench, as published on page 67 of the January, 1912 issue of American Motorist. The text provides the address of the company as 1409 Michigan Avenue in Chicago.

Selected Tools

Stephens 1-1/4 Angle Wrench

Fig. 373. Stephens 1-1/4 Angle Wrench, with Insets for Side View and Back Side Detail,

Fig. 373 shows a rare Stephens 1-1/4 angle wrench, marked with "Stephens Wrench" forged into the handle, with "Pat'd. Dec. 21, 09" forged into the back side.

The overall length is 9.4 inches, and the finish is plain steel, with traces of nickel plating.

The wrench face is stamped with "3/4", a reference to the older U.S.S. size convention for the 1-1/4 opening.

The patent date refers to patent 943,757, filed in 1908 by H.E. Stephens and issued in 1909.

Superior Wrench Company

The Superior Wrench Company was a maker of self-adjusting pipe wrenches operating in Marshalltown, Iowa. The company was founded in 1909 as the Lake Superior Wrench Company in Sault Ste Marie, Michigan, but by 1910 had moved to the Iowa location. The company name was later simplified by dropping the leading "Lake".

The company's best known product was a self-adjusting pipe wrench described by the Munro 1909 933,096 and Boulieu 1910 972,052 patents.

Fig. 374. 1909 Advertisement for Lake Superior Wrench Co. [External Link]

The early advertisement in Fig. 374 appeared in a 1909 issue of Technical World Magazine and refers to the tool as an "Automatic Auto Wrench". The ad offers the 12 inch model for $1 prepaid, or a set of four wrenches with sizes from 6 to 16 inches for just $3 prepaid.

At this time the company was still the Lake Superior Wrench Company, and the address is listed as 124 Maple Street, Sault Ste. Marie, Michigan.

A brief article [External Link] in the March, 1910 issue of Hardware Dealer's Magazine describes the operation and advantages of the wrenches, and an illustration shows models available from 6 inches up to 20 inches.

Selected Tools

Lake Superior 6 Inch Self-Adjusting Pipe Wrench

Fig. 375. Lake Superior 6 Inch Self-Adjusting Pipe Wrench, 1910.

Fig. 375 shows an early Lake Superior 6 inch self-adjusting pipe wrench, stamped "Lake Superior Wrench Co." and "Sault Ste. Marie, Mich." on the handle. The wrench is also marked with a patent notice "Patented U.S.A. Oct. 4-10 Canada July 12-10" stamped between the swing arms.

The overall length is 5.4 inches with the jaw retracted, and the maximum opening is 0.75 inches. The finish is plain steel, with pitting due to rust.

The first patent date refers to patent 972,052, filed by J. Boulieu in 1909 and issued in 1910.

The markings for the 1910 patent date and earlier company location indicate production in 1910.

Lake Superior 16 Inch Self-Adjusting Pipe Wrench

Fig. 376. Lake Superior 16 Inch Self-Adjusting Pipe Wrench, with Inset for Marking Detail, ca. 1909-1910.

Fig. 376 shows an earlier Lake Superior 16 inch self-adjusting pipe wrench, marked with "Lake Superior Wrench Co." and "Sault Ste. Marie, Michigan" forged into the handle, and with a "Pat. Pend." patent notice stamped between the swing arms.

The pending status refers to patent 972,052, filed by J. Boulieu in 1909 and issued in 1910.

The overall length is 16.0 inches with the jaw retracted and 17.5 inches fully extended. The maxiumum opening is approximately 2.0 inches.

The finish is plain steel, with pitting due to rust.

Superior 12 Inch Self-Adjusting Pipe Wrench

Fig. 377. Superior 12 Inch Self-Adjusting Pipe Wrench, with Inset for Side View, ca. 1910-1920.

Fig. 377 shows a later Superior 12 inch self-adjusting pipe wrench, marked with "Superior Wrench Company" forged into the handle.

The overall length is 12.0 inches with the jaw retracted, and the maxiumum opening is 1.3 inches. The finish is plain steel, with extensive pitting due to rust.
